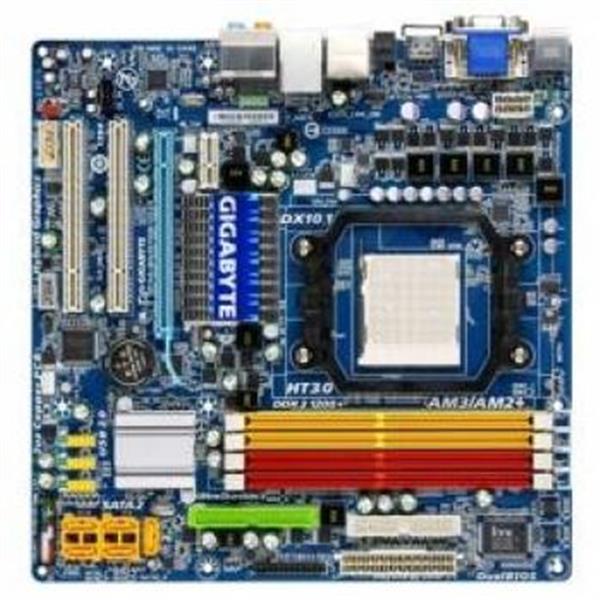

GA-MA785GM-US2H Gigabyte Motherboard AM2+/AM2 PCI Express DDR2 S (Refurbished)
Mfg Part No:
GA-MA785GM-US2H
Looking for a large quantity of GA-MA785GM-US2H? Call us at (800) 821-3354 or Request a Quote below and one of our sales representative will get in touch with you very soon.
Technical Specifications for GA-MA785GM-US2H
| General Information | |
| Manufacturer Part Number | GA-MA785GM-US2H |
| Brand Name | Gigabyte |
| Product Type | Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | 785G |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM3 PGA-941 |
| Processor Supported |
Phenom II X4 Phenom X4 Phenom X3 Phenom II X3 Phenom II X2 Athlon II X2 Athlon X2 Athlon 64 FX Athlon 64 X2 Athlon 64 Athlon Sempron X2 Sempron Phenom II |
| Multi GPU Supported | CrossFireX |
| Memory | |
| Number of Memory Slots | 4 |
| Maximum Memory | 16 GB |
| Memory Speed Supported |
1.07 GHz 800 MHz 667 MHz |
| Memory Technology | DDR2 SDRAM |
| I/O Controller | |
| Controller Type |
Floppy Controller Serial ATA/300 Ultra ATA/133 (ATA-7) |
| RAID Supported | Yes |
| RAID Levels |
0 1 1+0 JBOD |
| Video | |
| Onboard Video | On-board Video Chipset |
| Graphics Controller Manufacturer | ATI |
| Graphics Controller Model | Radeon HD4200 Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Number of Total Expansion Slots | 4 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| Interfaces/Ports | |
| Total Number of USB Ports | 1 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| DVI | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Total Number of Onboard USB Ports | 3 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification |
WEEE RoHS |
